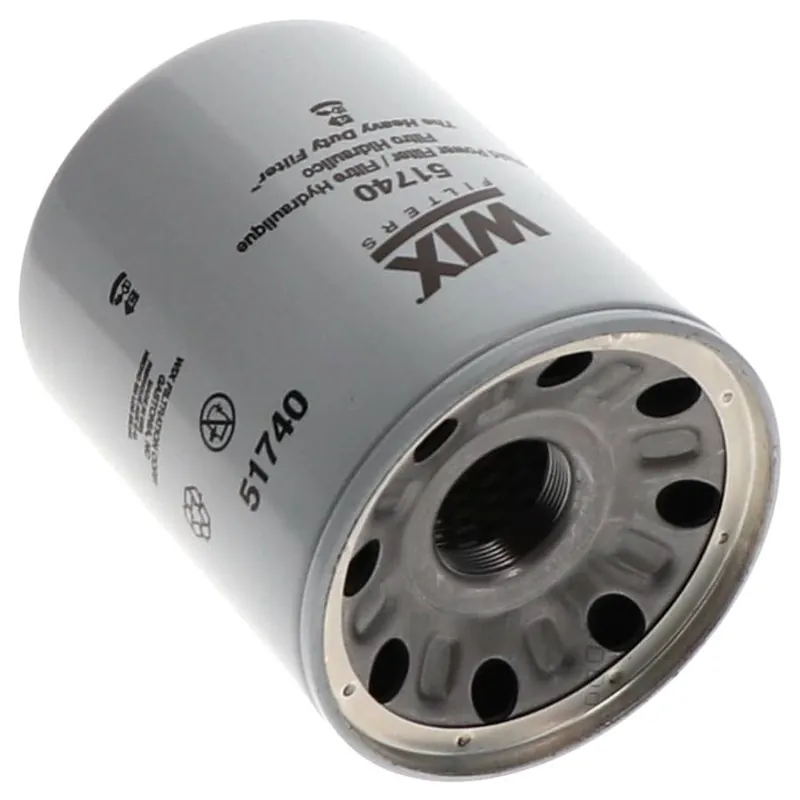

Wix Full Flow Spin-On Hydraulic Filter

Description

You need your heavy duty vehicles and equipment operating at peak efficiency, which is why Wix Hydraulic Filter are engineered to keep fluid contaminants in hydraulic systems to an absolute minimum. Hydraulic filter prevent particles and abrasives from reducing machine effectiveness.

Advanced protection for heavy duty vehicles and off-road equipment

Protect hydraulic parts, such as pumps, valves and cylinders

Prevent leakages and decreased mechanical velocities caused by abrasions

Specifications

Style: Spin-On Hydraulic Filter

Service: Hydraulic

Type: Full Flow

Media: Microglass

Height: 6.872″

Outer Diameter Top: 5.007″

Outer Diameter Bottom: Closed

Thread Size: 1 1/2″ – 16″

By-Pass Valve Setting: None

Beta Ratio: 2/20/75=0/10/15

Burst Pressure: 200 psi

Max Flow Rate: 28-30 gpm

Nominal Micron Rating: 8

Gasket Outside Diameter (15859 Packed): 4.762″

Gasket Inside Diameter (15859 Packed): 4.484″

Gasket Thickness (15859 Packed): 0.139″

Application

Cat, John Deere.
